YZF R1
Where is the OBD2 port in your Yamaha YZF R1? (2004 - 2005)
Follow our photos to find the diagnostic connector inside the vehicle. Once you have found it, connect your klavkarr and run the diagnostic.
Find the port in your YZF R1 (2004 - 2005) in 2 steps
Photos shared by our user community.

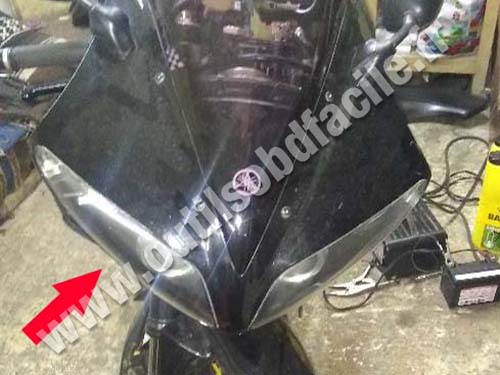

The diagnosis port is located in the cable bundle at the right of the fork

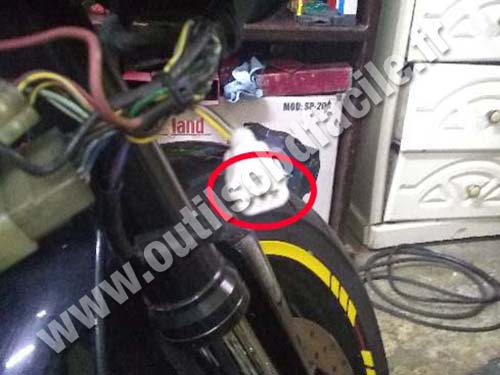

Here is the 4 pins non-standard diagnosis socket
On almost all OBD2-equipped vehicles, the 16-pin port is within 60 cm of the steering wheel, often near the fuse box.
Photos shared by R 1. Thank you for contributing.
