Passat B8

Where is the OBD2 port in your Volkswagen Passat B8? (2015 - ...)

Follow our photos to find the diagnostic connector inside the vehicle. Once you have found it, connect your klavkarr and run the diagnostic.

Find the port in your Passat B8 (2015 - ...) in 3 steps

Photos shared by our user community.

The OBD II port is located around the pedals

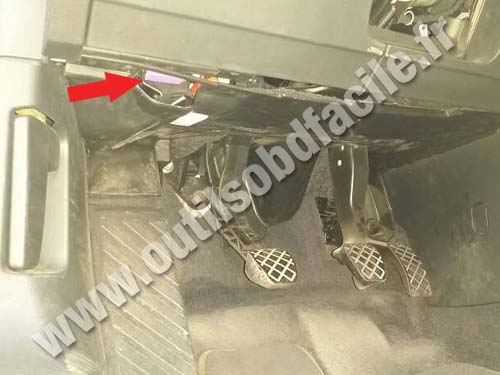

The EOBD port is visible at the top left of the pedals

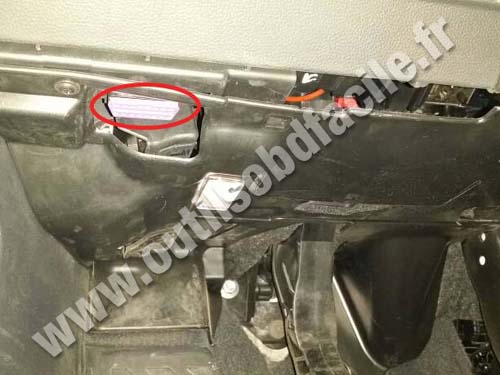

Here is the EOBD port

On almost all OBD2-equipped vehicles, the 16-pin port is within 60 cm of the steering wheel, often near the fuse box.

Photos shared by FranciscoD. Thank you for contributing.
