The zigzag multifunction warning light is a crucial dashboard symbol found on Dacia Sandero, Stepway, Duster, and Logan models. This warning light appears in red or orange depending on the severity of the issue. Learn what these dashboard lights mean, when to worry, and what action to take to keep your vehicle safe and running properly.
Affected vehicle models: Dacia Sandero, Sandero Stepway, Duster, Logan, Lodgy, Dokker
Are you looking for a car scanner ?
- My model is not in the list
I don't have any lights on
What does the zigzag warning light look like?
The zig zag warning light, also known as the multifunction indicator, is one of the key dashboard symbols on Dacia vehicles. It appears as an orange or red rectangle with a central wavy line, resembling an electrocardiogram, a wave, or even a spring. This distinctive dashboard light is unique to Dacia and Renault models.
The multifunction warning light can illuminate in either orange or red, with each colour indicating a different level of urgency for your Dacia Sandero, Duster, or Stepway.
Understanding Dacia warning lights: orange vs red zigzag light
Dacia warning lights use a colour-coded system to indicate the severity of issues. The zigzag multifunction light follows this same principle, appearing in different colours based on the problem detected.
Red zigzag warning light – urgent action required
Dashboard symbol name: Multifunction warning light (red)
Urgency level: Immediate stop required
What it means: This dashboard light turns on when the engine starts but should turn off quickly. If it remains on or appears whilst driving, it indicates a serious malfunction with your Dacia's systems.
What to do: If the red zigzag warning light turns on along with other dashboard symbols and a sound alert is triggered, pull over to the side of the road as soon as possible and turn off the engine. Do not restart the vehicle and contact roadside assistance immediately. This is one of the most critical Dacia warning lights.

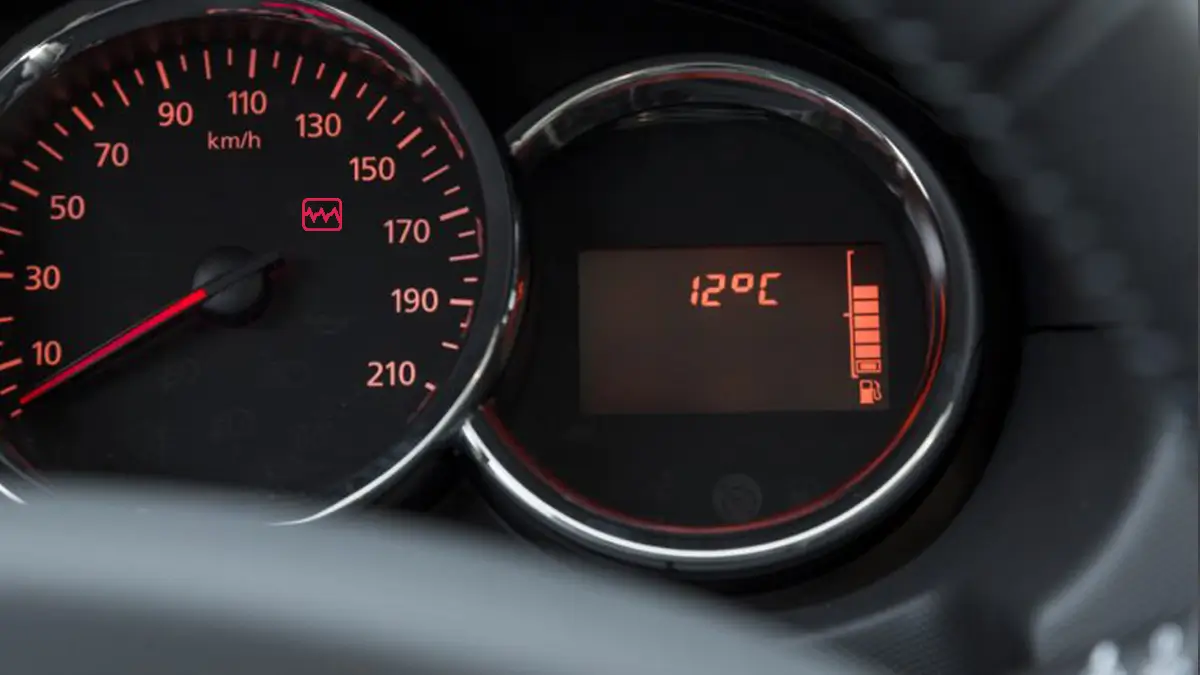

Orange zigzag warning light – proceed with caution
Dashboard symbol name: Multifunction warning light (orange)
Urgency level: Warning alert
What it means: This warning light turns on whilst driving along with other dashboard warning lights on your Dacia Sandero, Duster, or Stepway. It indicates an electronic issue that requires attention but is not immediately dangerous.
What to do: This dashboard symbol signals an electronic fault with your vehicle. You can continue driving, but you should visit a Dacia dealership or qualified mechanic as soon as possible to diagnose and resolve the issue.
Are you looking for a car scanner ?
Common Dacia dashboard symbols: zigzag light combinations
The zig zag multifunction warning light on Dacia vehicles often appears alongside other dashboard lights. Understanding these combinations helps you identify the specific issue affecting your Sandero, Duster, or Stepway.
Orange zigzag light + wrench symbol (service warning)

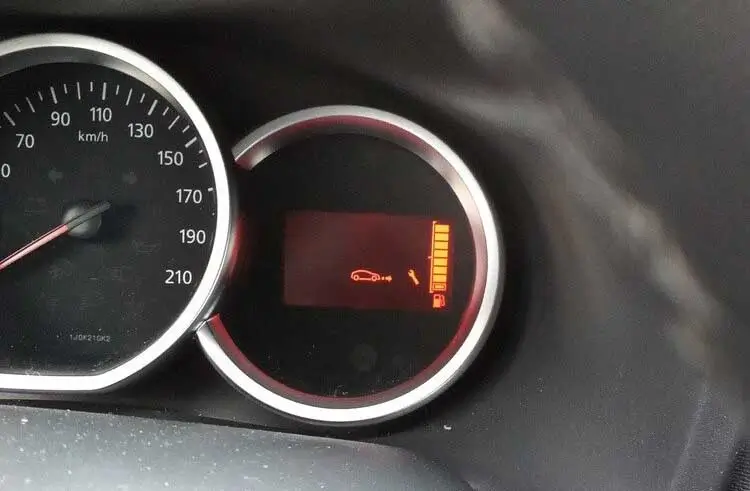

Oil changes and regular maintenance for Dacia vehicles should be performed annually or every 10,000 km. When the service is due, the orange multifunction warning light and the wrench symbol will appear together on your dashboard.
Schedule a service appointment and change the engine oil to avoid losing your vehicle's warranty. Understanding these dashboard symbols ensures your Dacia remains in optimal condition. Learn how to reset the oil change warning light using the klavkarr diagnostic tool.
Zigzag warning light + tyre pressure warning (TPMS alert)
Each wheel on your Dacia (except the spare tyre) has a sensor in the inflation valve that periodically measures tyre pressure. This Tyre Pressure Monitoring System (TPMS) is an important safety feature.
Red zigzag + tyre warning light: If a sudden loss of pressure occurs, such as a puncture, the tyre pressure warning light and the red zigzag light will turn on together, accompanied by an alert sound. You must stop immediately to change the tyre. This combination of dashboard lights indicates an urgent safety issue.
Orange zig zag + tyre warning light: If the TPMS detects a gradual pressure drop, the tyre warning light will turn on along with the orange multifunction warning light. Check the tyre pressure as soon as possible, ideally when the tyres are cold. The recommended pressure is listed inside the driver's door.
If the tyre pressure warning light blinks for a few seconds before staying on along with the orange multifunction warning light, one of the tyre sensors may be faulty or missing. Note: The tyre warning light will also turn on when using the spare tyre on your Dacia.
Frequently asked questions about Dacia warning lights
What does the zigzag warning light mean on a Dacia?
The zigzag warning light is a multifunction indicator that signals various electronic or system issues on your Dacia. In orange, it indicates a non-urgent problem requiring attention soon. In red, it signals a serious malfunction requiring immediate action.
Is it safe to drive with an orange zigzag warning light?
Yes, you can continue driving with the orange zigzag warning light, but you should book an appointment with a Dacia dealership or mechanic as soon as possible. The orange colour indicates an issue that needs attention but isn't immediately dangerous.
What should I do if the red zigzag warning light comes on?
If the red zigzag warning light appears, pull over safely as soon as possible, turn off the engine, and do not restart your vehicle. Contact roadside assistance immediately, as this indicates a serious system malfunction.
What are the most common dashboard symbols on Dacia vehicles?
Common Dacia dashboard symbols include the zigzag multifunction light, tyre pressure warning, oil change indicator (wrench symbol), engine management light, battery warning, and brake system alert. Each uses specific colours to indicate urgency levels.
