Where is the OBD2 port in your Vaz 1117? (2004 - 2012)

Follow our photos to find the diagnostic connector inside the vehicle. Once you have found it, connect your klavkarr and run the diagnostic.

Find the port in your 1117 (2004 - 2012) in 2 steps

Photos shared by our user community.

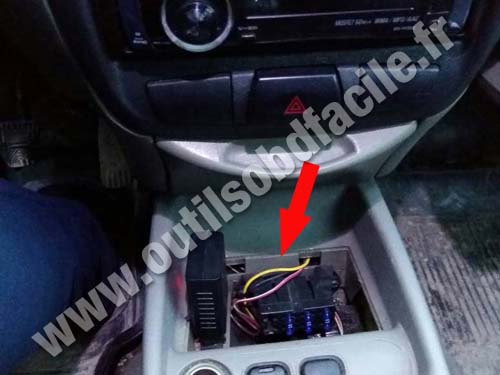

Connector is located under the central console near the cigarette lighter socket (remove the cover)

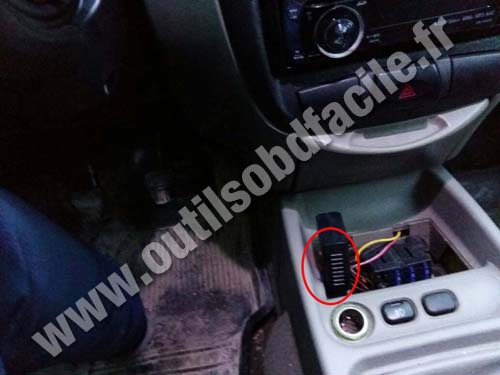

OBDII Connector

On almost all OBD2-equipped vehicles, the 16-pin port is within 60 cm of the steering wheel, often near the fuse box.
