Where is the OBD2 port in Lexus IS (XE10 RHD) (1998 - 2005)

You will find below several pictures which will help you find your OBD connector in your Lexus IS (XE10 RHD) (1998 - 2005).

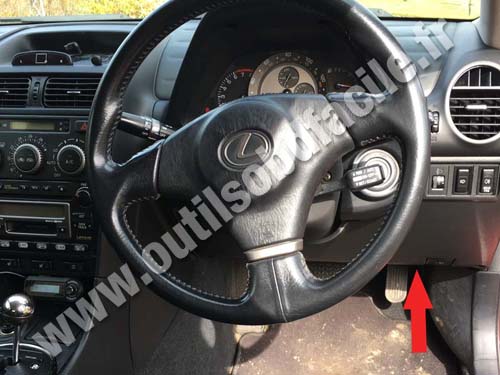

Lexus IS XE10 - Dashboard
OBD socket is under panel below steering wheel

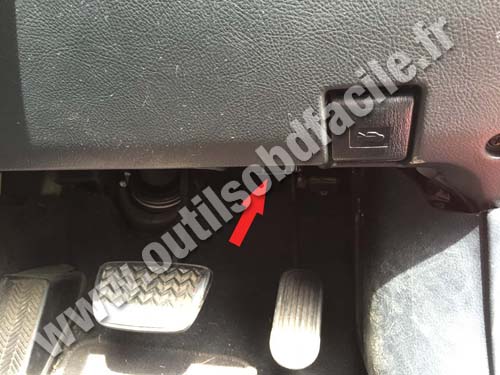

Lexus IS XE10 - Pedals
Connector is to the left of bonnet release

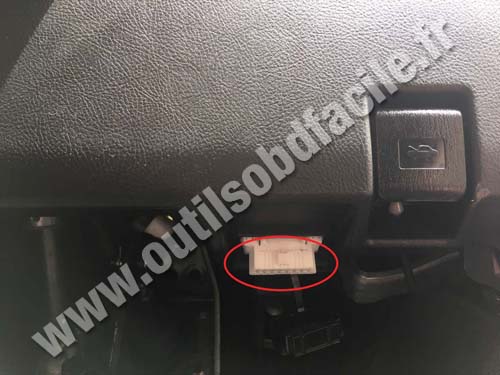

Lexus IS XE10 - OBD Plug
OBD plus is white (has black cover)

Those pictures were sent by Paula - Thank you for your contribution
